Part Number
109.0123
Description
| Part Number | 109.0123 |
| Part Type | Discs |
Package Dimensions
| Package Weight | 2957 g |
| Package Length | 255 mm |
| Package Width | 270 mm |
| Package Height | 50 mm |

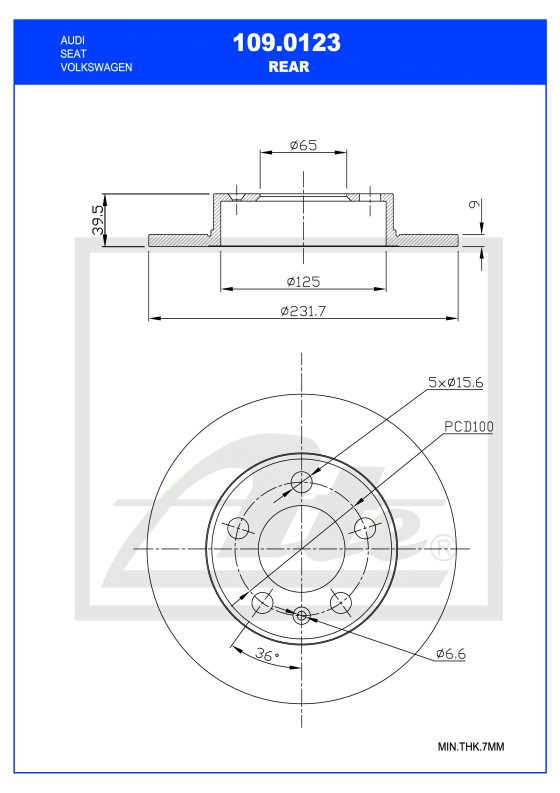

Product Dimensions
| Height | 39.5 mm |
| Outer Diameter | 231.7 mm |
| Inner Diameter | 125 mm |
| Spigot Bearing Diameter | 65 mm |
| Thread Hole Diameter | 15.6 mm |
| Thickness | 9 mm |
| Min. Thickness | 7 mm |
| PCD | 100 mm |
Other
| Num. of Wheel Bolt Holes | 5 |
| Type | S |
Part Document
Compatible Vehicles
| Make | Model | Series | Year | Fuel Type | Position |
|---|---|---|---|---|---|
| AUDI | A1 (8X) [2010-18] | 1.0 TFSI | 2010 - 2018 | PETROL | REAR |
| AUDI | A1 (8X) [2010-18] | 1.2 TFSI | 2010 - 2018 | PETROL | REAR |
| AUDI | A1 (8X) [2010-18] | 1.4 TFSI | 2010 - 2018 | PETROL | REAR |
| AUDI | A1 (8X) [2010-18] | 1.6 TDI | 2010 - 2018 | DIESEL | REAR |
| AUDI | A1 (8X) [2010-18] | 1.8 TFSI | 2010 - 2018 | PETROL | REAR |
| AUDI | A1 (8X) [2010-18] | 2.0 TDI | 2010 - 2018 | DIESEL | REAR |
| AUDI | A1 (GB) [2018-] | 25 TFSI | 2018 - 2026 | PETROL | REAR |
| AUDI | A1 (GB) [2018-] | 30 TFSI | 2018 - 2026 | PETROL | REAR |
| AUDI | A1 (GB) [2018-] | 35 TFSI | 2018 - 2026 | PETROL | REAR |
| AUDI | A1 (GB) [2018-] | 40 TFSI | 2018 - 2026 | PETROL | REAR |
| AUDI | A3 (8L) [1996-03] | 1.8 | 1996 - 2003 | PETROL | REAR |
| AUDI | A3 (8L) [1996-03] | 1.8 T | 1996 - 2003 | PETROL | REAR |
| SEAT | IBIZA III (6L) [2002-08] | 1.4 16V | 2002 - 2008 | PETROL | REAR |
| SEAT | IBIZA III (6L) [2002-08] | 1.6 | 2002 - 2008 | PETROL | REAR |
| SEAT | IBIZA III (6L) [2002-08] | 1.8 T Cupra R | 2002 - 2008 | PETROL | REAR |
| SEAT | IBIZA III (6L) [2002-08] | 1.9 TDI | 2002 - 2008 | DIESEL | REAR |
| SEAT | IBIZA III (6L) [2002-08] | 1.9 TDI Cupra R | 2002 - 2008 | DIESEL | REAR |
| SEAT | IBIZA III (6L) [2002-08] | 2.0 | 2002 - 2008 | PETROL | REAR |
| SEAT | IBIZA IV (6J) [2008-17] | 1.4 | 2008 - 2017 | PETROL | REAR |
| SEAT | IBIZA IV (6J) [2008-17] | 1.6 | 2008 - 2017 | PETROL | REAR |
| SEAT | IBIZA IV (6J) [2008-17] | 2.0 | 2008 - 2017 | PETROL | REAR |
| VW | BEETLE II (New Beetle) [1998-11] | 1.8 T | 1998 - 2011 | PETROL | REAR |
| VW | BEETLE II (New Beetle) [1998-11] | 2.0 | 1998 - 2011 | PETROL | REAR |
| VW | GOLF IV (1J) [1997-06] | 1.4 16V | 1997 - 2006 | PETROL | REAR |
| VW | GOLF IV (1J) [1997-06] | 1.6 | 1997 - 2006 | PETROL | REAR |
| VW | GOLF IV (1J) [1997-06] | 1.6 16V | 1997 - 2006 | PETROL | REAR |
| VW | GOLF IV (1J) [1997-06] | 1.6 FSI | 1997 - 2006 | PETROL | REAR |
| VW | GOLF IV (1J) [1997-06] | 1.8 | 1997 - 2006 | PETROL | REAR |
| VW | GOLF IV (1J) [1997-06] | 1.8 T | 1997 - 2006 | PETROL | REAR |
| VW | GOLF IV (1J) [1997-06] | 1.9 SDI | 1997 - 2006 | DIESEL | REAR |
| VW | GOLF IV (1J) [1997-06] | 1.9 TDI | 1997 - 2006 | DIESEL | REAR |
| VW | GOLF IV (1J) [1997-06] | 2.0 | 1997 - 2006 | PETROL | REAR |
| VW | GOLF IV (1J) [1997-06] | 2.3 V5 | 1997 - 2006 | PETROL | REAR |
| VW | JETTA IV (1J) [1998-06] | 1.6 | 1998 - 2006 | PETROL | REAR |
| VW | JETTA IV (1J) [1998-06] | 1.8 T | 1998 - 2006 | PETROL | REAR |
| VW | JETTA IV (1J) [1998-06] | 1.9 TDI | 1998 - 2006 | DIESEL | REAR |
| VW | JETTA IV (1J) [1998-06] | 2.0 | 1998 - 2006 | PETROL | REAR |
| VW | JETTA IV (1J) [1998-06] | 2.0 4motion | 1998 - 2006 | PETROL | REAR |
| VW | JETTA IV (1J) [1998-06] | 2.3 V5 | 1998 - 2006 | PETROL | REAR |
| VW | POLO IV (9N) [2001-10] | 1.4 | 2001 - 2010 | PETROL | REAR |
| VW | POLO IV (9N) [2001-10] | 1.4 16V | 2001 - 2010 | PETROL | REAR |
| VW | POLO IV (9N) [2001-10] | 1.4 FSI | 2001 - 2010 | PETROL | REAR |
| VW | POLO IV (9N) [2001-10] | 1.4 TDI | 2001 - 2010 | DIESEL | REAR |
| VW | POLO IV (9N) [2001-10] | 1.6 16V | 2001 - 2010 | PETROL | REAR |
| VW | POLO IV (9N) [2001-10] | 1.8 GTI | 2001 - 2010 | PETROL | REAR |
| VW | POLO IV (9N) [2001-10] | 1.9 TDi | 2001 - 2010 | DIESEL | REAR |
| VW | POLO IV (9N) [2001-10] | 1.9 TDI | 2001 - 2010 | DIESEL | REAR |
| VW | POLO V (6R/6C) [2009-17] | 1.0 | 2009 - 2017 | PETROL | REAR |
| VW | POLO V (6R/6C) [2009-17] | 1.0 TSI | 2009 - 2017 | PETROL | REAR |
| VW | POLO V (6R/6C) [2009-17] | 1.2 | 2009 - 2017 | PETROL | REAR |
| VW | POLO V (6R/6C) [2009-17] | 1.2 TDI | 2009 - 2017 | DIESEL | REAR |
| VW | POLO V (6R/6C) [2009-17] | 1.2 TSI | 2009 - 2017 | PETROL | REAR |
| VW | POLO V (6R/6C) [2009-17] | 1.2 TSI 16V | 2009 - 2017 | PETROL | REAR |
| VW | POLO V (6R/6C) [2009-17] | 1.4 | 2009 - 2017 | PETROL | REAR |
| VW | POLO V (6R/6C) [2009-17] | 1.4 GTI | 2009 - 2017 | PETROL | REAR |
| VW | POLO V (6R/6C) [2009-17] | 1.4 TDI | 2009 - 2017 | DIESEL | REAR |
| VW | POLO V (6R/6C) [2009-17] | 1.4 TSI | 2009 - 2017 | PETROL | REAR |
| VW | POLO V (6R/6C) [2009-17] | 1.6 | 2009 - 2017 | PETROL | REAR |
| VW | POLO V (6R/6C) [2009-17] | 1.6 TDI | 2009 - 2017 | DIESEL | REAR |
| VW | POLO V (6R/6C) [2009-17] | 1.8 GTI | 2009 - 2017 | PETROL | REAR |
| VW | POLO VI (AW/BZ) [2017-] | 1.0 | 2017 - 2026 | PETROL | REAR |
| VW | POLO VI (AW/BZ) [2017-] | 1.0 TSI | 2017 - 2026 | PETROL | REAR |
| VW | POLO VI (AW/BZ) [2017-] | 1.6 TDI | 2017 - 2026 | DIESEL | REAR |
| VW | POLO VI (AW/BZ) [2017-] | 2.0 GTI | 2017 - 2026 | PETROL | REAR |
| VW | POLO VIVO II (6R) [2017-] | 1.0 TSI | 2017 - 2026 | PETROL | REAR |
| VW | POLO VIVO II (6R) [2017-] | 1.4 | 2017 - 2026 | PETROL | REAR |
| VW | POLO VIVO II (6R) [2017-] | 1.6 | 2017 - 2026 | PETROL | REAR |
| VW | T-CROSS (C11) [2018-] | 1.0 TSI | 2018 - 2026 | PETROL | REAR |
| VW | T-CROSS (C11) [2018-] | 1.5 TSI | 2018 - 2026 | PETROL | REAR |
| VW | T-CROSS (C11) [2018-] | 1.6 Tdi | 2018 - 2026 | DIESEL | REAR |
| VW | TAIGO (CS1) [2021-] | 1.0 TSI | 2021 - 2026 | PETROL | REAR |
