124.0196

Finding parts made easy!

Filter parts using the select options below.

Clear Session

OR
Part Number

124.0196

Description

Part Number124.0196
Part TypeDiscs

Package Dimensions

Package Weight8106 g
Package Length310 mm
Package Width320 mm
Package Height70 mm

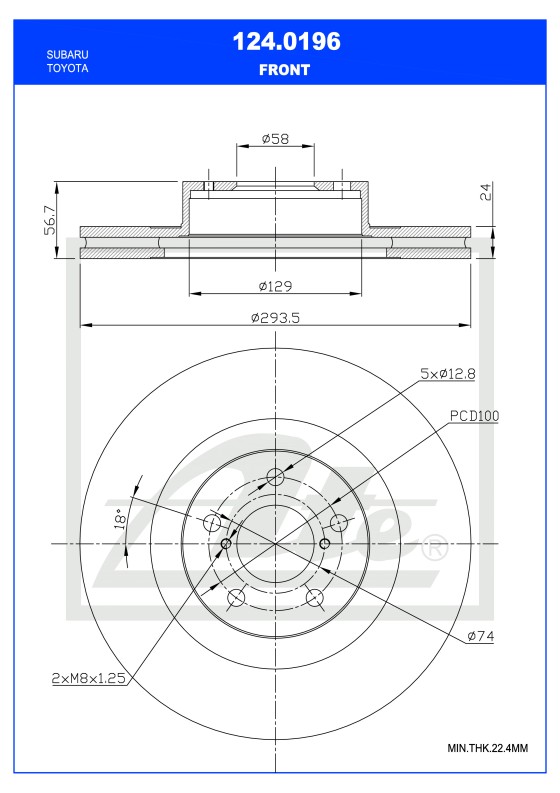

Product Dimensions

Height56.7 mm
Outer Diameter293.5 mm
Inner Diameter129 mm
Spigot Bearing Diameter58 mm
Thread Hole Diameter12.8 mm
Thickness24 mm
Min. Thickness22.4 mm
PCD100 mm

Other

Num. of Wheel Bolt Holes5
TypeV

Part Document

Compatible Vehicles
Make Model Series Year Fuel Type Position
SAAB 9-2X Estate [2005-06] 2.0 AWD 2005 - 2006 PETROL FRONT
SAAB 9-2X Estate [2005-06] 2.5 AWD 2005 - 2006 PETROL FRONT
SCION FR-S Coupe [2013-20] 2.0 S 2013 - 2020 PETROL FRONT
SUBARU BAJA Pickup [2003-06] 2.5 AWD 2003 - 2006 PETROL FRONT
SUBARU BRZ I (ZC6) [2012-21] 2.0 2012 - 2021 PETROL FRONT
SUBARU EXIGA [2008-18] 2.0 2008 - 2018 PETROL FRONT
SUBARU EXIGA [2008-18] 2.0 AWD 2008 - 2018 PETROL FRONT
SUBARU EXIGA [2008-18] 2.0 GT AWD 2008 - 2018 PETROL FRONT
SUBARU EXIGA [2008-18] 2.5 AWD 2008 - 2018 PETROL FRONT
SUBARU FORESTER II (SG) [2003-08] 2.0 S Turbo AWD 2003 - 2008 PETROL FRONT
SUBARU FORESTER II (SG) [2003-08] 2.5 AWD 2003 - 2008 PETROL FRONT
SUBARU FORESTER II (SG) [2003-08] 2.5 RX Nato AWD 2003 - 2008 PETROL FRONT
SUBARU FORESTER III (SH) [2009-13] 2.0 AWD 2009 - 2013 PETROL FRONT
SUBARU FORESTER III (SH) [2009-13] 2.0 BiFuel AWD 2009 - 2013 PETROL/LPG FRONT
SUBARU FORESTER III (SH) [2009-13] 2.0 D AWD 2009 - 2013 PETROL FRONT
SUBARU FORESTER III (SH) [2009-13] 2.5 AWD 2009 - 2013 PETROL FRONT
SUBARU FORESTER III (SH) [2009-13] 2.5 Turbo AWD 2009 - 2013 PETROL FRONT
SUBARU FORESTER IV (SJ) [2014-18] 2.0 BiFuel AWD 2014 - 2018 PETROL/LPG FRONT
SUBARU FORESTER IV (SJ) [2014-18] 2.0 D AWD 2014 - 2018 PETROL FRONT
SUBARU FORESTER IV (SJ) [2014-18] 2.0i AWD 2014 - 2018 PETROL FRONT
SUBARU FORESTER IV (SJ) [2014-18] 2.5 AWD 2014 - 2018 PETROL FRONT
SUBARU IMPREZA I (GF) [1992-00] 2.0 AWD 1992 - 2000 PETROL FRONT
SUBARU IMPREZA I (GF) [1992-00] 2.0 Turbo GT AWD 1992 - 2000 PETROL FRONT
SUBARU IMPREZA I (GF) [1992-00] 2.0 WRX STi AWD 1992 - 2000 PETROL FRONT
SUBARU IMPREZA I (GF) [1992-00] 2.0i Turbo AWD 1992 - 2000 PETROL FRONT
SUBARU IMPREZA II (GD/GG) [2000-07] 2.0 AWD 2000 - 2007 PETROL FRONT
SUBARU IMPREZA II (GD/GG) [2000-07] 2.0 WRX Turbo AWD 2000 - 2007 PETROL FRONT
SUBARU IMPREZA II (GD/GG) [2000-07] 2.0i R AWD 2000 - 2007 PETROL FRONT
SUBARU IMPREZA II (GD/GG) [2000-07] 2.5 GB270 AWD 2000 - 2007 PETROL FRONT
SUBARU IMPREZA II (GD/GG) [2000-07] 2.5 WRX AWD 2000 - 2007 PETROL FRONT
SUBARU IMPREZA III (GE/GR) [2007-14] 2.5 AWD 2007 - 2014 PETROL FRONT
SUBARU IMPREZA III (GE/GR) [2007-14] 2.5 WRX S AWD 2007 - 2014 PETROL FRONT
SUBARU IMPREZA III (GE/GR) [2007-14] 2.5 WRX SE AWD 2007 - 2014 PETROL FRONT
SUBARU IMPREZA III (GE/GR) [2007-14] 2.5 WRX STI 330S AWD 2007 - 2014 PETROL FRONT
SUBARU IMPREZA III (GE/GR) [2007-14] S-GT AWD 2007 - 2014 PETROL FRONT
SUBARU IMPREZA III (GE/GR) [2007-14] WRX AWD 2007 - 2014 PETROL FRONT
SUBARU IMPREZA IV (GJ) [2011-16] 1.6 2011 - 2016 PETROL FRONT
SUBARU IMPREZA IV (GJ) [2011-16] 1.6 AWD 2011 - 2016 PETROL FRONT
SUBARU IMPREZA IV (GJ) [2011-16] 2.0 2011 - 2016 PETROL FRONT
SUBARU IMPREZA IV (GJ) [2011-16] 2.0 AWD 2011 - 2016 PETROL FRONT
SUBARU IMPREZA IV (GJ) [2011-16] 2.0 Hybrid AWD 2011 - 2016 PETROL/ELECTRIC FRONT
SUBARU LEGACY III (BE) [1999-04] 2.0 AWD 1999 - 2004 PETROL FRONT
SUBARU LEGACY III (BE) [1999-04] 2.0 RSK AWD 1999 - 2004 PETROL FRONT
SUBARU LEGACY III (BE) [1999-04] 2.5 AWD 1999 - 2004 PETROL FRONT
SUBARU LEGACY III (BE) [1999-04] 3.0 H6 AWD 1999 - 2004 PETROL FRONT
SUBARU LEGACY IV (BL) [2003-09] 2.0 2WD 2003 - 2009 PETROL FRONT
SUBARU LEGACY IV (BL) [2003-09] 2.0 AWD 2003 - 2009 PETROL FRONT
SUBARU LEGACY IV (BL) [2003-09] 2.0 D AWD 2003 - 2009 PETROL FRONT
SUBARU LEGACY IV (BL) [2003-09] 2.0 GT Tuned BY STI AWD 2003 - 2009 PETROL FRONT
SUBARU LEGACY IV (BL) [2003-09] 2.0 R AWD 2003 - 2009 PETROL FRONT
SUBARU LEGACY IV (BL) [2003-09] 2.0 Turbo AWD 2003 - 2009 PETROL FRONT
SUBARU LEGACY IV (BL) [2003-09] 2.5 AWD 2003 - 2009 PETROL FRONT
SUBARU LEGACY IV (BL) [2003-09] 2.5 i AWD 2003 - 2009 PETROL FRONT
SUBARU LEGACY IV (BL) [2003-09] 2.5 STI AWD 2003 - 2009 PETROL FRONT
SUBARU LEGACY IV (BL) [2003-09] 2.5 T AWD 2003 - 2009 PETROL FRONT
SUBARU LEGACY V (BM) [2009-14] 2.0 D AWD 2009 - 2014 PETROL FRONT
SUBARU LEGACY V (BM) [2009-14] 2.5 CNG AWD 2009 - 2014 PETROL/CNG FRONT
SUBARU LEGACY V (BM) [2009-14] 2.5i AWD 2009 - 2014 PETROL FRONT
SUBARU OUTBACK II (BE) [1999-04] 2.5 AWD 1999 - 2004 PETROL FRONT
SUBARU OUTBACK II (BE) [1999-04] 3.0 H6 AWD 1999 - 2004 PETROL FRONT
SUBARU OUTBACK III (BL) [2003-09] 2.0 D AWD 2003 - 2009 PETROL FRONT
SUBARU OUTBACK III (BL) [2003-09] 2.5 AWD 2003 - 2009 PETROL FRONT
SUBARU OUTBACK III (BL) [2003-09] 2.5 BiFuel AWD 2003 - 2009 PETROL/LPG FRONT
SUBARU OUTBACK III (BL) [2003-09] 3.0 AWD 2003 - 2009 PETROL FRONT
SUBARU OUTBACK IV (BR) [2009-14] 2.0 D AWD 2009 - 2014 PETROL FRONT
SUBARU OUTBACK IV (BR) [2009-14] 2.5 BiFuel AWD 2009 - 2014 PETROL/LPG FRONT
SUBARU OUTBACK IV (BR) [2009-14] 2.5 CNG AWD 2009 - 2014 PETROL/CNG FRONT
SUBARU OUTBACK IV (BR) [2009-14] 2.5i AWD 2009 - 2014 PETROL FRONT
SUBARU OUTBACK IV (BR) [2009-14] 3.6 AWD 2009 - 2014 PETROL FRONT
SUBARU OUTBACK IV (BR) [2009-14] 3.6 R AWD 2009 - 2014 PETROL FRONT
SUBARU XV I (GP) [2012-17] 1.6 BiFuel AWD 2012 - 2017 PETROL/LPG FRONT
SUBARU XV I (GP) [2012-17] 1.6 i AWD 2012 - 2017 PETROL FRONT
SUBARU XV I (GP) [2012-17] 2.0 BiFuel AWD 2012 - 2017 PETROL/LPG FRONT
SUBARU XV I (GP) [2012-17] 2.0 D AWD 2012 - 2017 PETROL FRONT
SUBARU XV I (GP) [2012-17] 2.0 Hybrid AWD 2012 - 2017 PETROL/ELECTRIC FRONT
SUBARU XV I (GP) [2012-17] 2.0i AWD 2012 - 2017 PETROL FRONT
TOYOTA 86 I (ZN6) [2012-21] 2.0 2012 - 2021 PETROL FRONT
TOYOTA 86 II (ZN8) [2022-] 2.4 GR 2022 - 2026 PETROL FRONT
